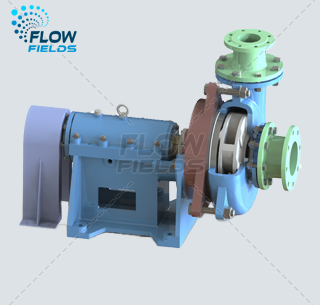

SDS DESULFURIZATION CYCLE PUMP/ SSZ SLURRY PUMP
SDS Pump Performance Range
SINGLE STAGE, HORIZONTAL MOUNTING, BRACKET OR SUSPENSION STRUCTURE (VERTICAL INSTALLATION)
The overcurrent parts are made of low carbon stainless steel, which has a long service life, excellent resistance to chloride stress corrosion cracking and higher mechanical strength. The water conservancy loss is small, the pump efficiency is high, and the operation is stable.
Capacity Q up to 11000m³/h
Differential Head H up to 120m
Working Temperature up to 120℃
Operating frequencies 50 or 60 Hz
Pressure up to 1.5MPa
Fluid name: PH value of the slurry is 2-13, concentration up to 60%.
Applications: Power Plants, Metallurgy and Wastewater Treatment Projects.
SSZ Pump Performance Range
CORROSION RESISTANT, ABRASION, SLURRY PUMP
Designed wear parts in the wear-prone area, standard configuration uses high-burn materials, which can convey abrasive and high-density or aggressive mud, prolong the service life, and minimum maintenance. Pumping efficiently and reliably, with low efficiency loss, safe operation, which avoids fragmentation, convulsions and distortion of linings or non-metallic parts, ensures continuous operation under shear or sliding wear conditions.
Capacity Q up to 2200m³/h
Differential Head H up to 140m
Working Temperature up to 120℃
Operating frequencies 50 or 60 Hz
Pressure up to 1.6MPa
Fluid name: Contains more solid particles or strong abrasive properties.
Applications: Grinding processes, mud pipes, mineral processing processes, tailings transportation.
