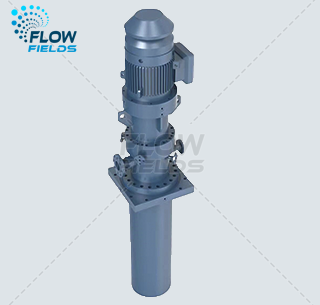

FV6 DOUBLE-CASING DIFFUSER VERTICALLY SUSPENDED PUMP
FV6 Pump Performance Range
Designed to comply API 610 and ISO13709.
API610 material H and provide Material EN 3.1 report.
Vertically suspended, double casing (canned) pumps.
Single suction, radial impeller.
Applications in NPSH available is limited, pumping clean or slightly polluted, cold or hot, chemically neutral or aggressive liquids.
Capacity Q up to 800m³/h
Differential Head H up to 800m
Working Temperature up to 180℃
Operating frequencies 50 or 60 Hz
Pressure up to 10MPa
Fluid name: , Gasoline, Condensate, Amine, Propylene, propane, ethane, isobutane, Class I Chemical, Propylene, Liquefied gas
Applications: Oil & Gas, Chemical & Petrochemical, Power& Engergy, Molten salt, Customized solutions.
