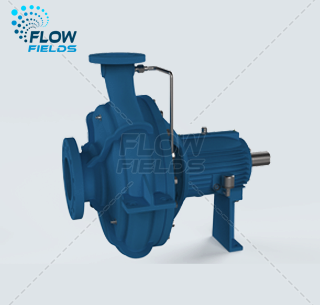

S1 SINGLE STAGE END SUCTION PROCESS CENTRIFUGAL PUMP
S1A Pump Performance Range
SINGLE STAGE, END SUCTION HORIZOTAL PUMP
Designed for pumping clean, abrasive or corrosive liquids as well as stocks of various kinds with high efficiency in flowing and head stability, S1A Pump material customized depending on fluid requirements (Abrasion, Corrosion resistant), In order to ensure the pump safe, longevity fate turn, all of these could improve productivity efficiency and reduce material lost. The S1A pumps Sealing is specially designed for difficult liquids offering reliable operation and low total sealing costs.
Capacity Q up to 7200m³/h
Differential Head H up to 150m
Working Temperature up to 200℃
Operating frequencies 50 or 60 Hz
Pressure up to 2.5MPa
Fluid name: Clean, Abrasive or Corrosive liquids as well as Stocks of various kinds.
Applications: General industry fluid services.
S1U Pump Performance Range
SINGLE SATAGE, END SUCTION, HIGH EFFICIENCY CENTRIFUGAL PUMP (OPEN IMPELLER)
An upgraded version of S1A. Based on its full performance but increase the capacity and head range conveying up to 9000m³/h, S1U pump improved technology and performance efficiency, if the liquid contains gas or air the pump can be modified with internal gas removal construction stabilizes the operation, which not only improves the economic efficiency, also provides a wider flow service requirements.
Capacity Q up to 9000m³/h
Differential Head H up to 155m
Working Temperature up to 200℃
Operating frequencies 50 or 60 Hz
Pressure up to 1.6MPa
Fluid name: Clean, Abrasive or Corrosive liquids as well as Stocks of various kinds.
Applications: Large and tight hydraulic coverage to satisfy the process requirements of versatile general and industrial applications.
S1N Pump Performance Range
SINGLE STAGE, END SUCTION HORIZOTAL NON-CLOGGING PUMP
Non-Clogging pump designed for fluid containing large particles or long fibers, has a strong sewage discharges capacity by special hydraulic design prevents plugging and lets big particles pass. The S1N pump material customized depending on fluid requirements (Abrasion, Corrosion resistant), design overall compact with smaller pump dimension, lower noise, significant energy saving.
Capacity Q up to 1800m³/h
Differential Head H up to 80m
Working Temperature up to 200℃
Operating frequencies 50 or 60 Hz
Pressure up to 1.8MPa
Fluid name: Abrasive or Corrosive liquids, Sludges and Slurries Containing Large Particles or Long Fibers.
Applications: Mines, Wastewater, Sewage plants etc. fluid service.
S1W Pump Performance Range
SINGLE STAGE, END SUCTION HORIZOTAL WEAR-RESISTANT PUMP
Wear-Resistant pump could service abrasive or corrosive fluid applications where durability is essential. The S1W pump material customized depending on fluid requirements (Abrasion, Corrosion resistant) suitable for long-term pumping strong acid, alkali, salt or oxidant with highly abrasive by simple structure, non-wearing of overflow spare parts, stable operation, uniform liquid delivery and high efficiency.
Capacity Q up to 7200m³/h
Differential Head H up to 100m
Working Temperature up to 180℃
Operating frequencies 50 or 60 Hz
Pressure up to 1.8MPa
Fluid name: Corrosive and Abrasive applications where durability SI essential.
Applications: Metallurgy, Mining, Power and Chemical Industry fluid services.
S1E Pump Performance Range
SINGLE STAGE, END SUCTION HORIZOTAL CENTRILINE PUMP
High temperature and high-pressure pump is specially designed for where system pressure is high and pressure/temperature shocks occur with advanced technology to provide user low economic cost but safety and reliability. The S1E pump material customized depending on fluid requirements (Abrasion, Corrosion resistant), S1E pump sealing SI mechanical seal with sealing water equipment/ cooling recycle to ensure pumping long-life.
Capacity Q up to 5400m³/h
Differential Head H up to 180m
Working Temperature up to 280℃
Operating frequencies 50 or 60 Hz
Pressure up to 2.5MPa
Fluid name: Hot clean, Abrasive or Corrosive liquids.
Applications: Power, General Industry fluid services.
