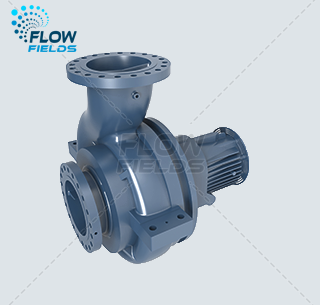

FH1/ FH2 CENTERLINE MOUNTING HORIZONTAL CHEMICAL PUMP
FH2C Pump Performance Range
Design focuses on improving performance efficiency and extending pump life, improves losses in high-temperature environments by additional functional configurations. Bearing bracket designed enables component interchangeability, better heat dissipation and prevents oil leakage from contaminating the medium. Shaft seals are modular mechanical seals to meet API682 (ISO21049) standard and available with a full API 610 piping plans.
Capacity Q up to 2600m³/h
Differential Head H up to 320m
Working Temperature up to 400℃
Operating frequencies 50 or 60 Hz
Pressure up to 9.5MPa
Fluid name: High temperature, high pressure, corrosive liquid.
Applications: Hydrocarbon processing industry, oil, gas and refining industry; Seawater desalination and condensate process processes; Recovery turbine.
FH2D Pump Performance Range
HEAVY DUTY, AIR-COOLENT BEARING HOUSING, CHEMICAL PUMP
Single-stage, End suction, closed impeller, radial centerline pump. Design to increase the volute thickness to coverlet a variety of pressure ranges and configure standard drains. Shaft seals are modular mechanical seals to meet API 682 (ISO21049) standard, available with full of API610 piping plans. Adapter frame and bearing housing increases the rigidity of the pump head. Heavy-duty and hardness shafts can accommodate low shaft deflections.
Capacity Q up to 2600m³/h
Differential Head H up to 320m
Working Temperature up to 430℃
Operating frequencies 50 or 60 Hz
Pressure up to 10MPa
Fluid name: From low-temperature liquefied gas to high-temperature gasoline containing solid particles and oil residues.
Applications:
Hydrocarbon processing industry, oil, gas and refining industry; Seawater desalination and condensate process processes; Recovery turbine.
