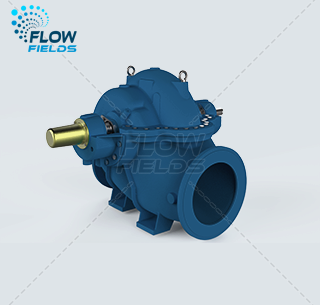

FB1 DOUBLE SUCTION AXIALLY SPLIT BETWEEN-BEARINGS PUMP
FB1 Pump Performance Range
API 610 STANDARD AXIALLY SPLIT SINGLE STAGE BETWEEN-BEARINGS PUMP
Axial split volute, double suction pump designed for simple maintenance of rotor set, do not need to remove the pipeline valve, or changing the drive device. The double suction impeller installs with a wear ring to replace easy, and extending the service life of the pump. Impeller design improves pumping efficiency, reduces cavitation margin, ensures a larger range of conveying liquid capacity and stable operation with small pressure fluctuations. Shaft seal options packing seal or mechanical seal, fully considering the customer's target budget, saving costs.
Capacity Q up to 10000m³/h
Differential Head H up to 160m
Working Temperature up to 160℃
Operating frequencies 50 or 60 Hz
Pressure up to 6.4MPa
Fluid name: Clean liquids with some tolerance of slight contamination by solids over a wide temperature range.
Applications: Booster pump, Seawater desalination, Water treatment, offshore duties, Pulp and papermaking.
