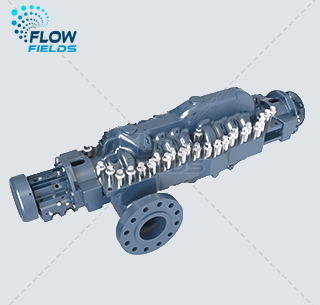

FB3 AXIALLY SPLIT MULTISTAGE BETWEEN-BEARINGS PUMP
FB3 Pump Performance Range
Designed to comply API 610 and ISO13709.
Opposed impeller, dual volute, horizontal multistage pumps
Sized to satisfy rotor dynamics and power transmission
Allows 7300 series ball thrust bearings to be used at higher energy levels without expensive lube systems
Applications in Refined product pipeline, LPG pipelines and CO2 injection, Boiler feed, Nuclear safety-related, high-pressure services.
Capacity Q up to 3200m³/h
Differential Head H up to 2900m
Working Temperature up to 200℃
Operating frequencies 50 or 60 Hz
Pressure up to 31MPa
Fluid name: LPG, Products water, Boiler Feed water, Reverse osmosis seawater, Diesel, jet kerosene, gasoline
Applications: Oil & Gas, Chemical & Petrochemical, Power& Engergy, Molten salt, Customized solutions.
