A2 Pump Performance Range

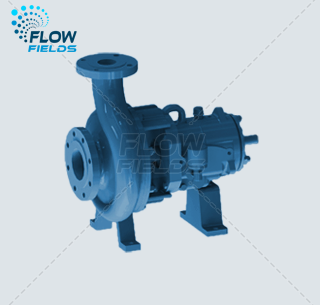

SINGLE STAGE, END SUCTION HORIZONTAL CENTRIFUGAL PUMP (SELECTION HIGH GRADE MATERIAL)
The addition of innovative concepts and advanced technologies between the impeller tolerance and casing cover to increases the thrust load pressure and anti-rotation function of the sealing chamber, reduce wear, vaporization, overheating and gasification of mechanical seals. The mechanical seal has a cartridge option to ensure that the fluid in use is corrosive without reducing the service life of the seal.
Capacity Q up to 1600m³/h/ 7000gpm
Differential Head H up to 280m/ 900ft
Working Temperature up to 200℃/ 390℉
Operating frequencies 50 or 60 Hz
Pressure up to 2.8MPa/ 400psi
Fluid name: Cleans or contains corrosive liquids with solid impurities and slender fibers.
Applications: Chemical and General industy.
